SAE Quick coupling
·
B9

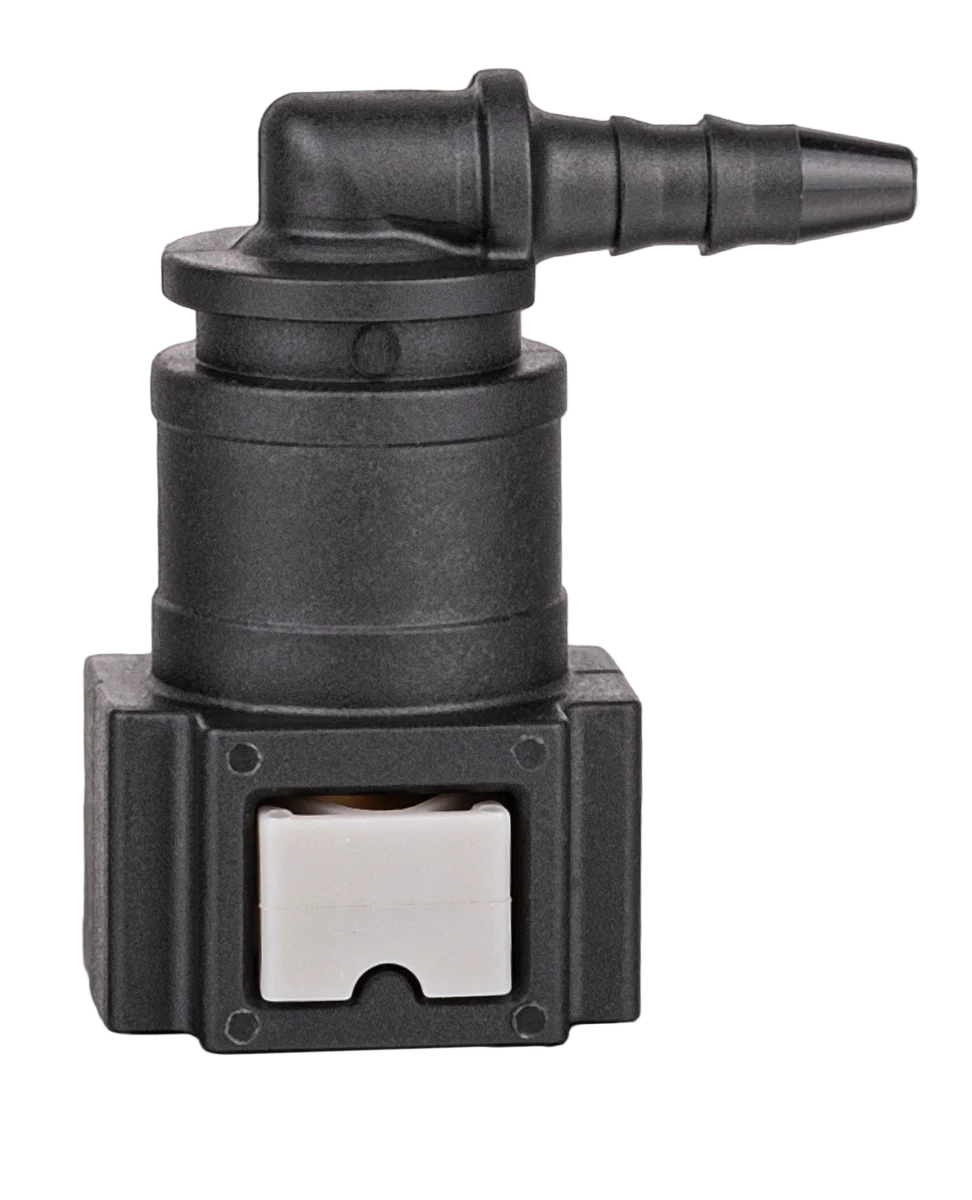

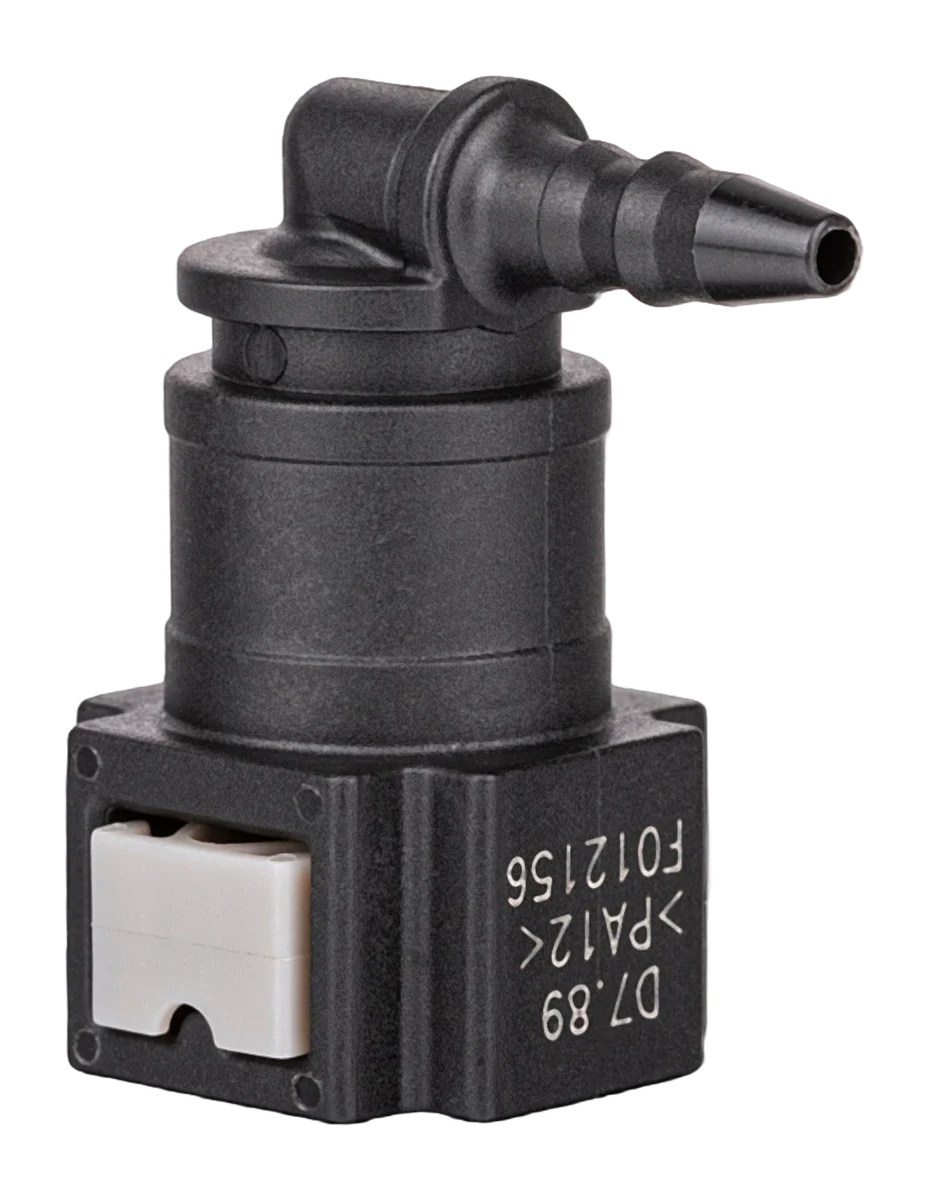

SAE 7.89-5/16" - 90° - Ø6x1mm - FUEL
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length31.5 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 7.89 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø7.89 mm
Outer Ø23.5 mm
StandardSAE
Fitting dim.7.89 mm
Min.7.83 mm
Max.7.95 mm
Male 2/2
Fir-tree
Inner Ø2.1 mm
Outer Ø5.4 mm
Fitting materialPlastic pipe
Fitting dim.4 mm
Tube min.3.9 mm
Tube max.4.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
