Adapter
·
B58

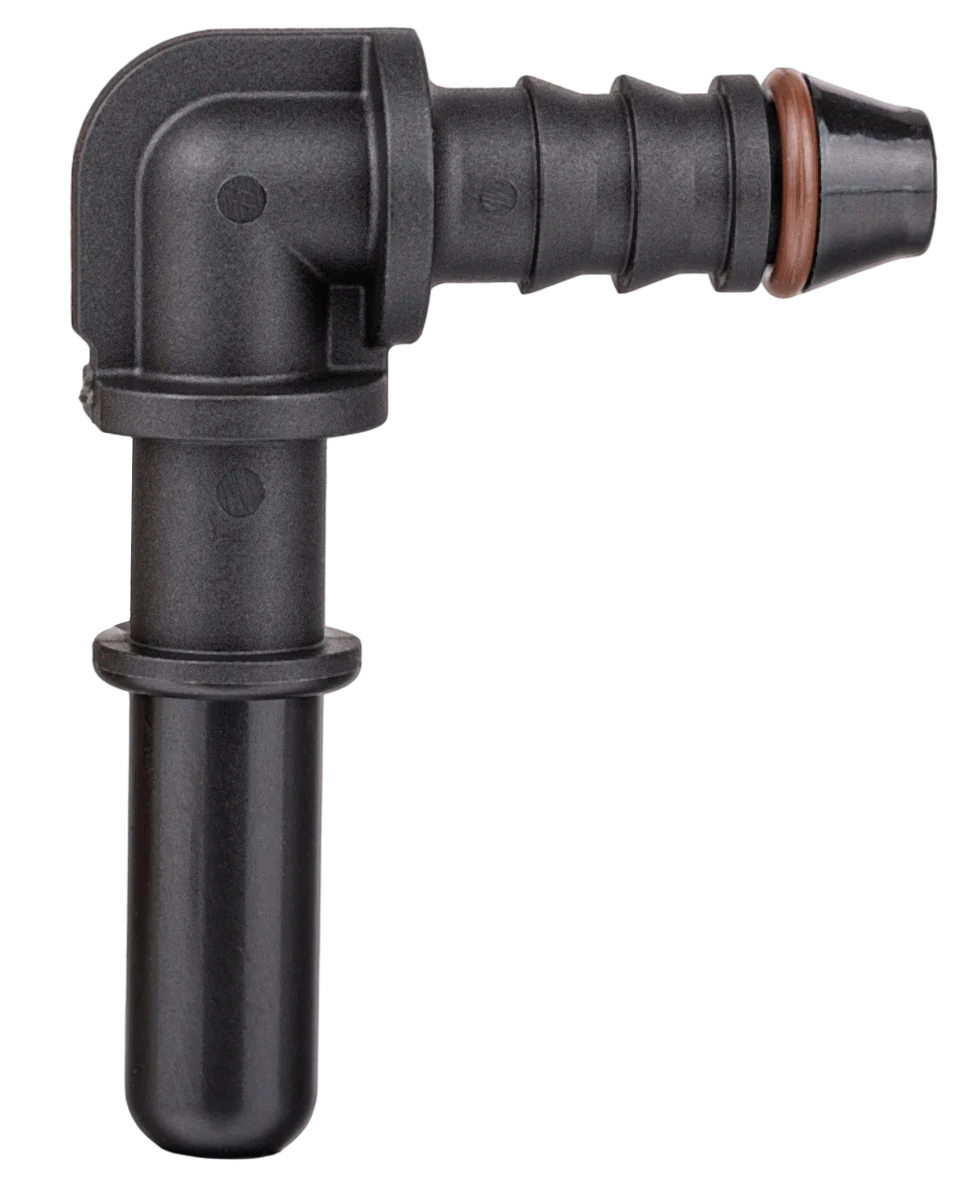

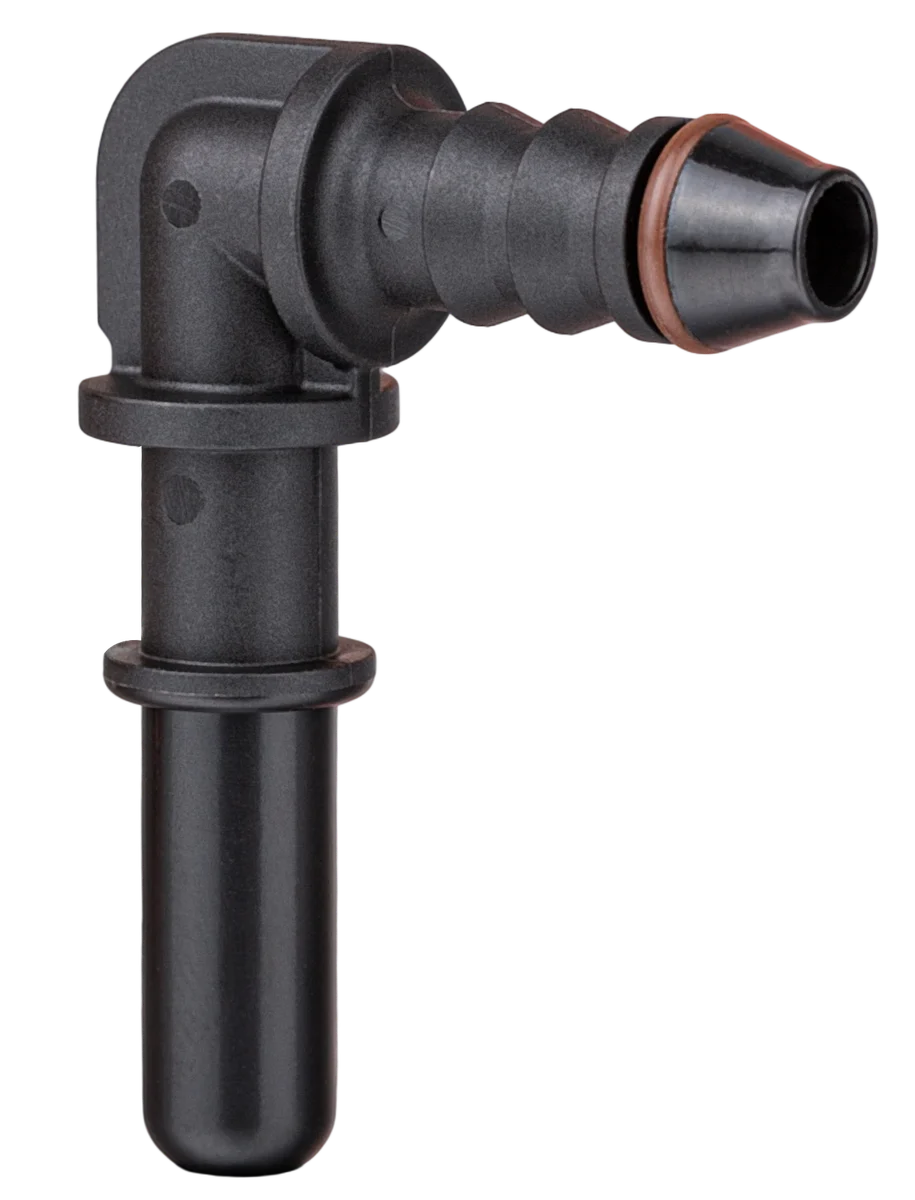

ADAPTER SAE 7.89-5/16" - 90° - Ø8X1mm - FUEL (LIQUID)
— Specifications
GeometryElbow 90°
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length46.15 mm
StandardSAE
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
SAE
Inner Ø4.7 mm
Outer Ø7.89 mm
StandardSAE7.89
Fitting dim.7.89 mm
Male 2/2
Fir-tree
Inner Ø4.8 mm
Outer Ø8.9 mm
Fitting materialPlastic pipe
Fitting dim.6 mm
Tube min.5.8 mm
Tube max.6.2 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
