Adapter
·
B56

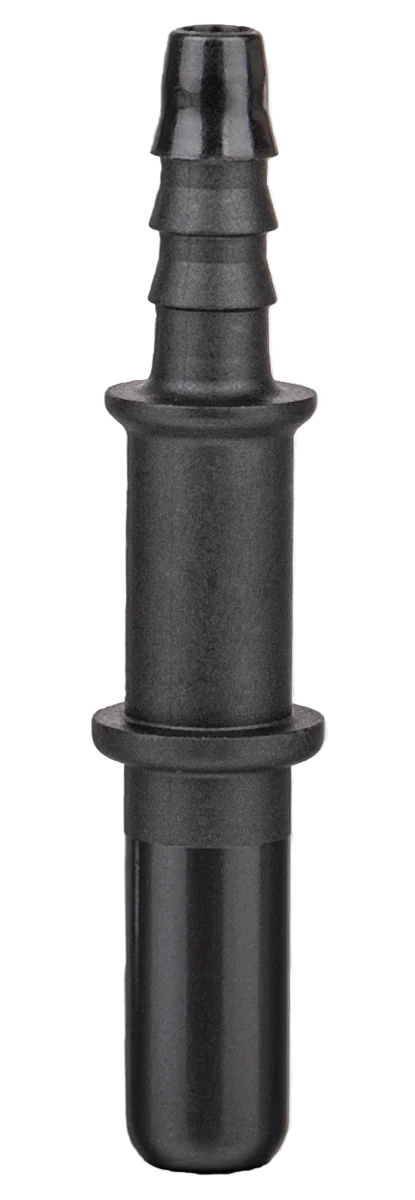

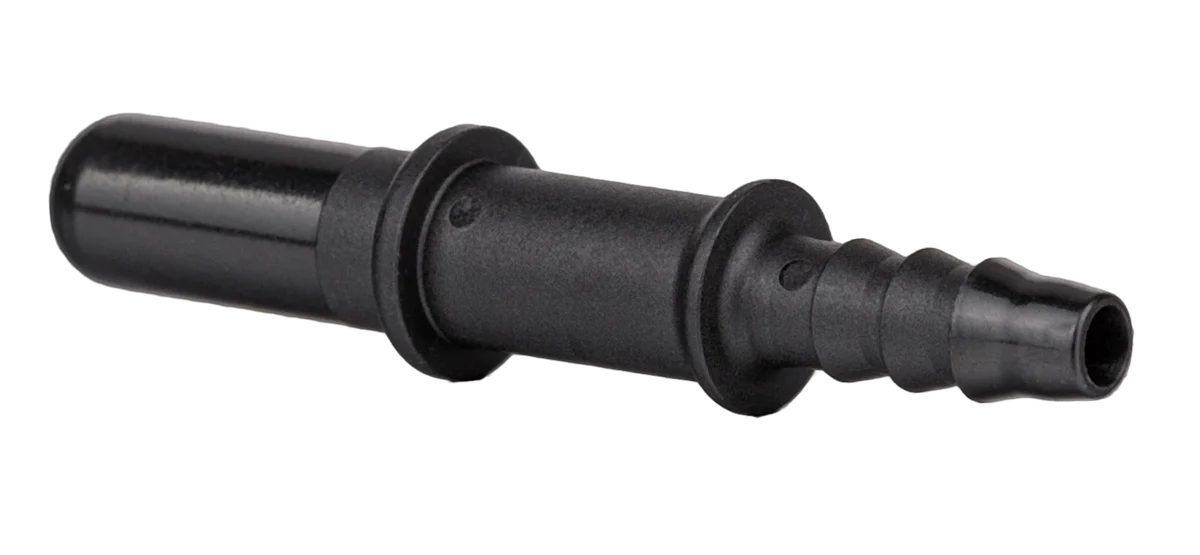

ADAPTER SAE 7.89-5/16" - 0° - Ø6X1mm - FUEL (LIQUID)
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
Total length53.62 mm
StandardSAE
FamilyAdapter
CategoryAdapter
— Interfaces · 2
Male 1/2
SAE
Inner Ø3.3 mm
Outer Ø7.89 mm
StandardSAE7.89
Fitting dim.7.89 mm
Male 2/2
Fir-tree
Inner Ø3.3 mm
Outer Ø6.06 mm
Fitting materialPlastic pipe
Fitting dim.4 mm
Tube min.3.9 mm
Tube max.4.1 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
