SAE Quick coupling
·
B41

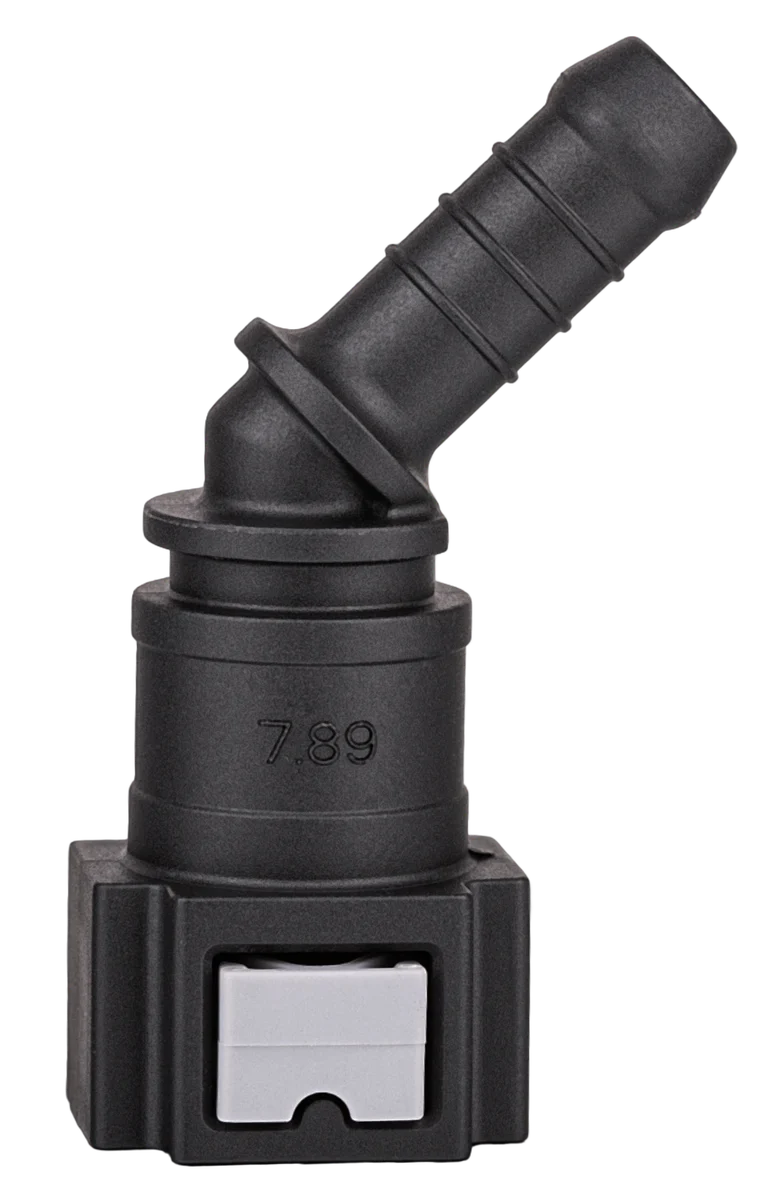

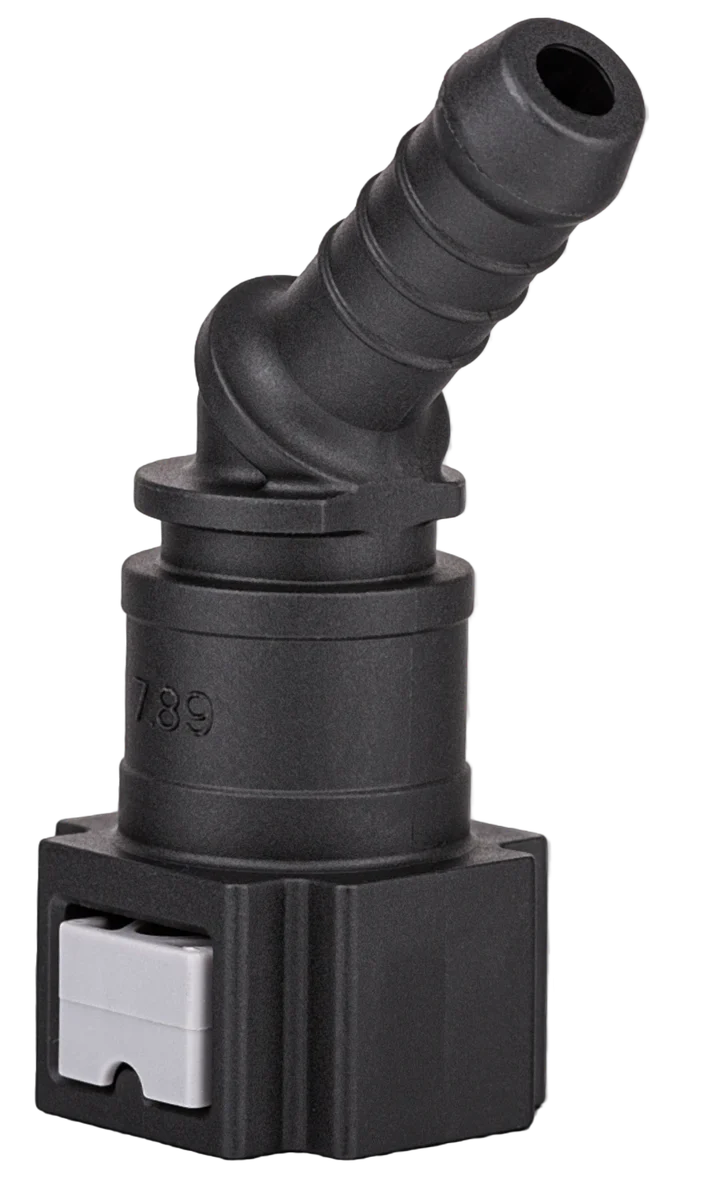

SAE 7.89-5/16" - 45° - Rubber 8 - FUEL(LIQUID)
— Specifications
GeometryElbow 45°
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length35 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 7.89 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø7.89 mm
Outer Ø23.5 mm
StandardSAE
Fitting dim.7.89 mm
Min.7.83 mm
Max.7.95 mm
Male 2/2
Fir-tree
Inner Ø4 mm
Outer Ø9.2 mm
Fitting materialRubber Hose
Fitting dim.8 mm
Tube min.7.5 mm
Tube max.8 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
