SAE Quick coupling
·
B22

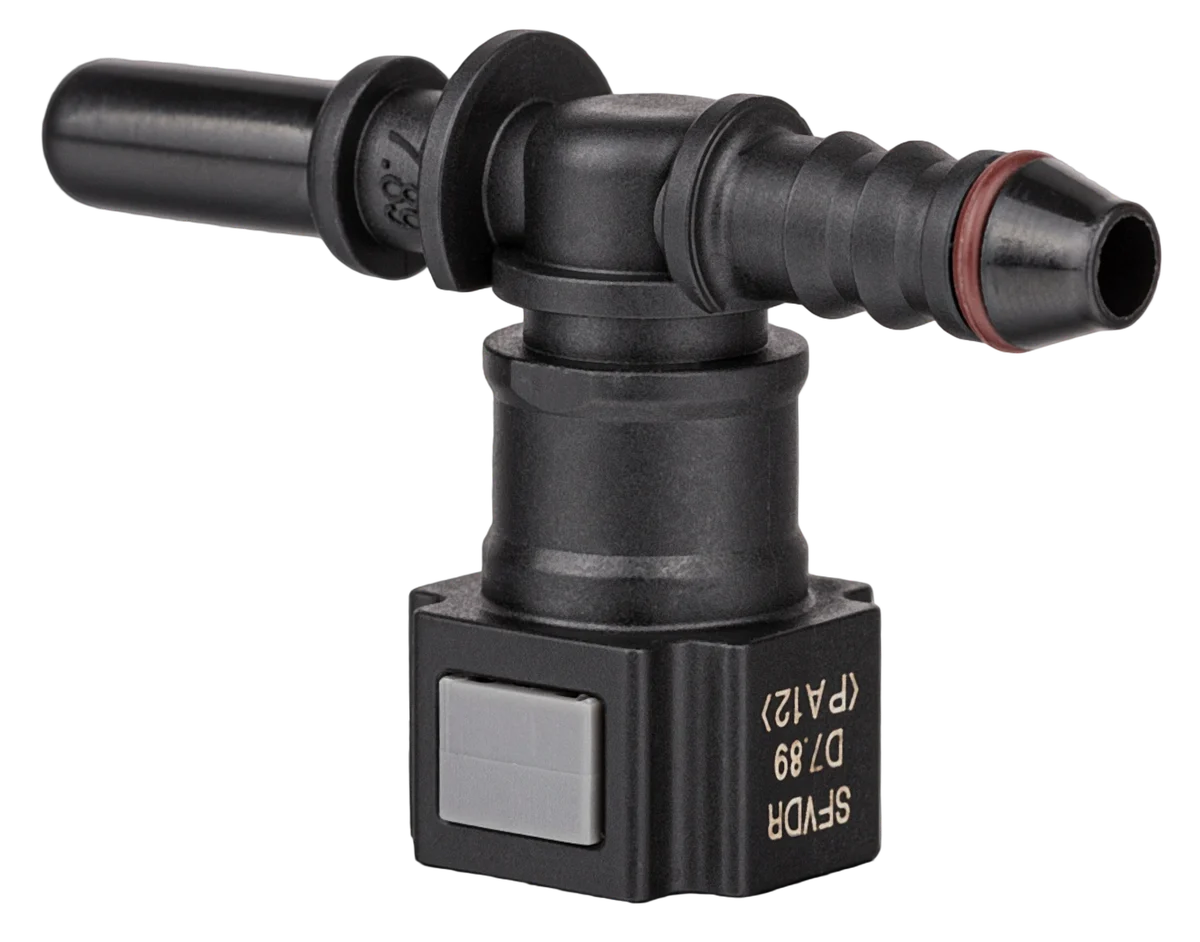

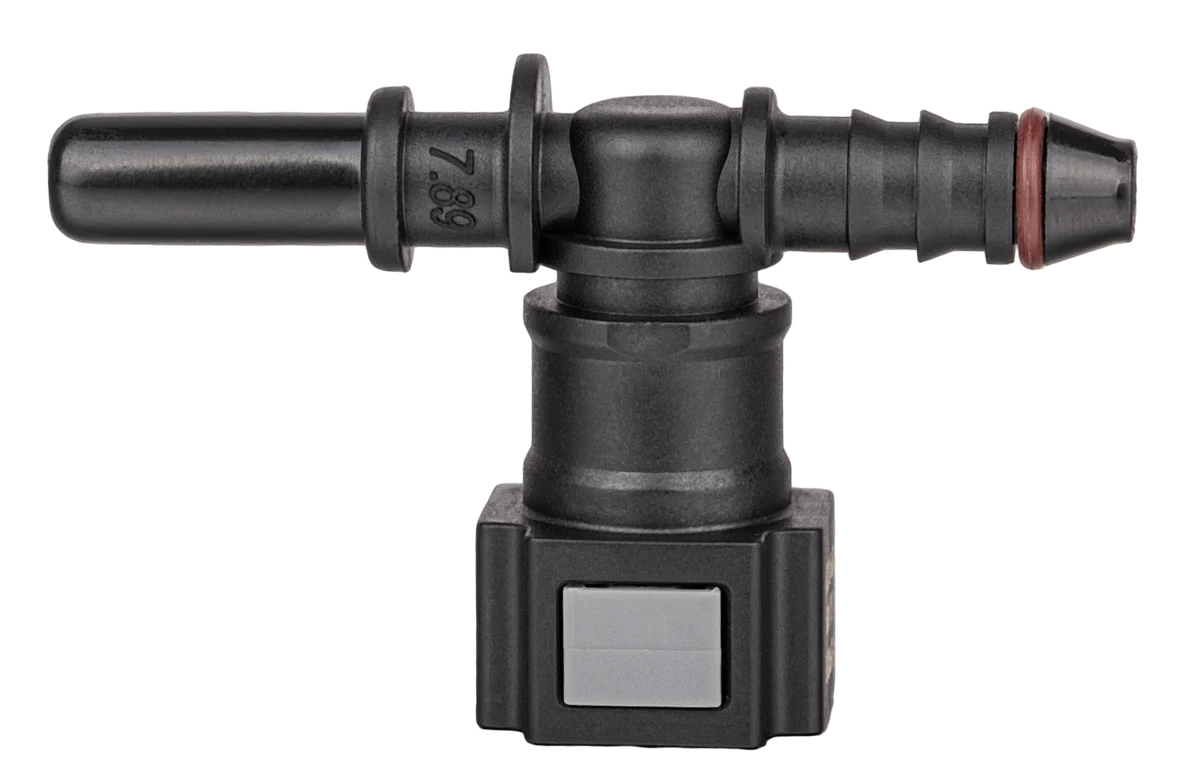

SAE 7.89-5/16" - 3 WAY - MALE SAE 7.89 - Ø8X1mm - FUEL
— Specifications
Geometry3 WAY T Shape
Working temp.-30 / 120 °C
Pressure5–7 bar
Total length40 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 7.89 Quick Connectors
— Interfaces · 3
Female 1/3
SAE
Inner Ø7.89 mm
Outer Ø23.5 mm
StandardSAE
Fitting dim.7.89 mm
Min.7.83 mm
Max.7.95 mm
Male 2/3
Fir-tree
Inner Ø4.85 mm
Outer Ø8.9 mm
Fitting materialPlastic pipe
Fitting dim.6 mm
Tube min.5.7 mm
Tube max.6.3 mm
Male 3/3
SAE
Inner Ø4.85 mm
Outer Ø7.89 mm
Fitting materialSAE
