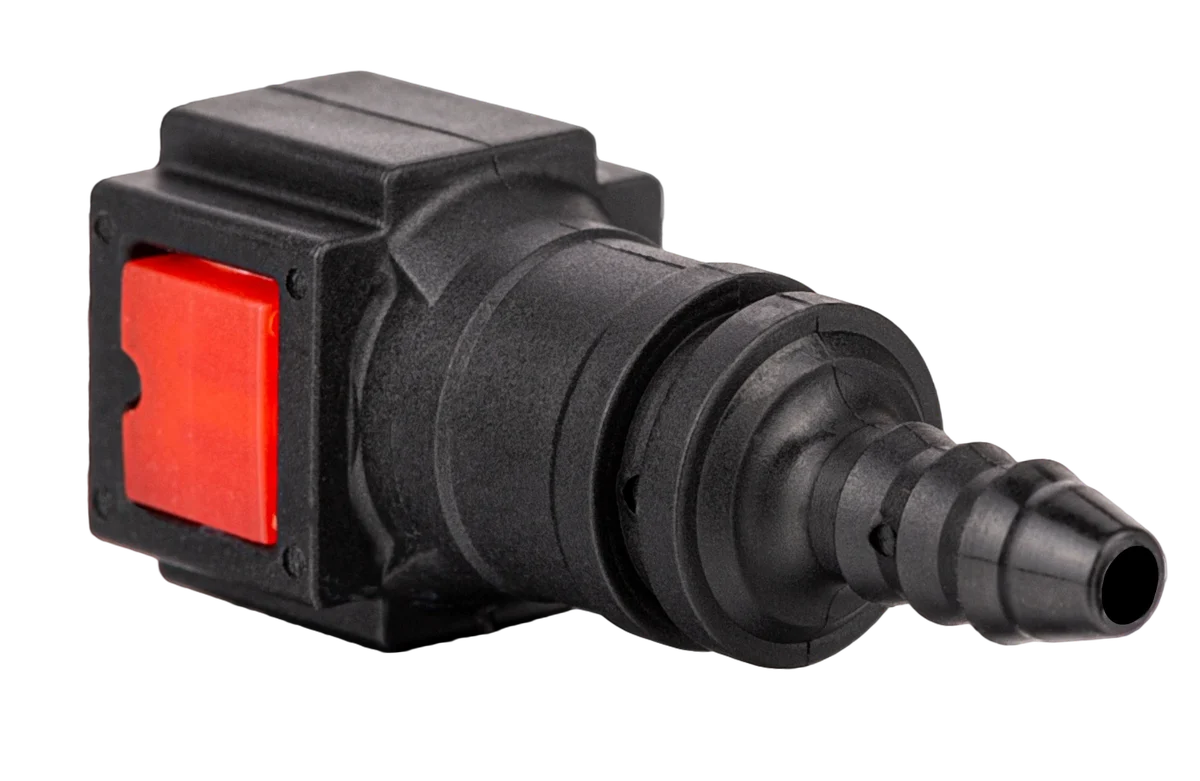

SAE Quick coupling
·
AU7

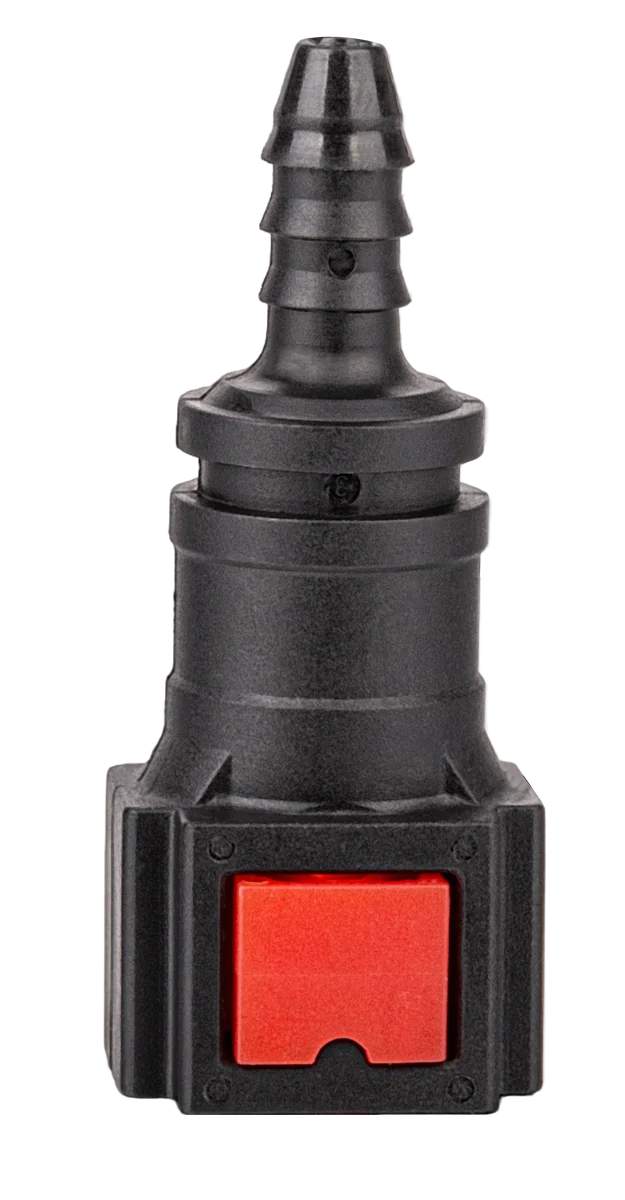

SAE 6.30-1/4" - 0° - Ø7X1mm - SCR UREA
— Specifications
GeometryStraight
Working temp.-30 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length35 mm
StandardSAE
FamilySAE Quick coupling
CategorySAE 6.30 Quick Connectors
— Interfaces · 2
Female 1/2
SAE
Inner Ø6.3 mm
Outer Ø21.5 mm
StandardSAE
Fitting dim.6.3 mm
Min.6.24 mm
Max.6.36 mm
Male 2/2
Fir-tree
Inner Ø2.7 mm
Outer Ø6.5 mm
Fitting materialPlastic pipe
Fitting dim.5 mm
Tube min.4.5 mm
Tube max.5 mm
— Solutions · Applications
Electrical/Fuel Cell Powertrain
Thermal management systemLow pressure gases/vapours
Internal combustion Engines
Fuel SystemLow pressure gases/vapours managementLubrication SystemThermal management SystemDiesel Exhaust Fluid (AdBlueTM) System
Autonomous Driving
Fluid/Air Washer System
Electrical Fast Charging
Cooling System
Data Centers
Cooling System
Green Energy Production
Air/fluid actuators
