CQC Quick coupling
·
270-53

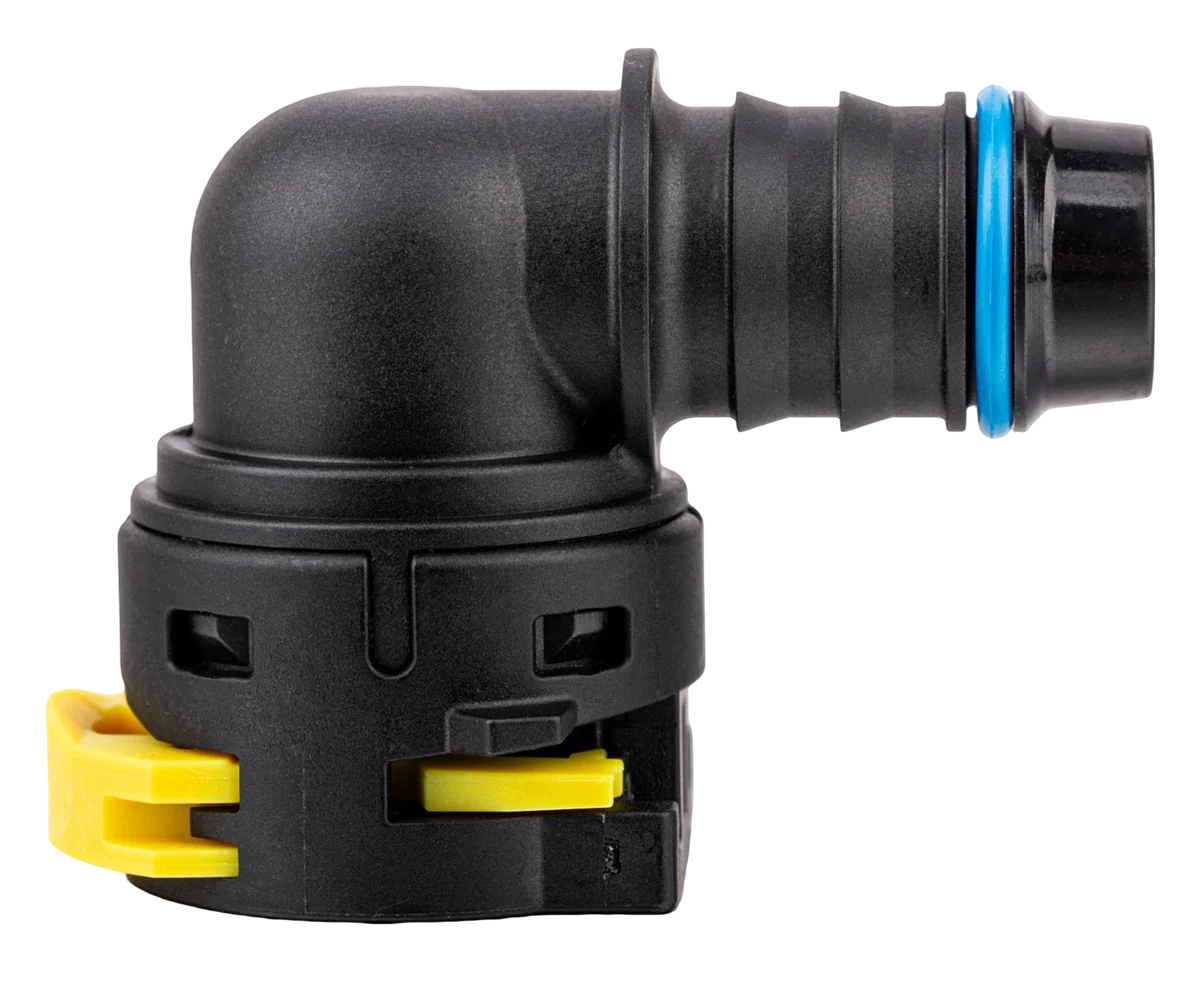

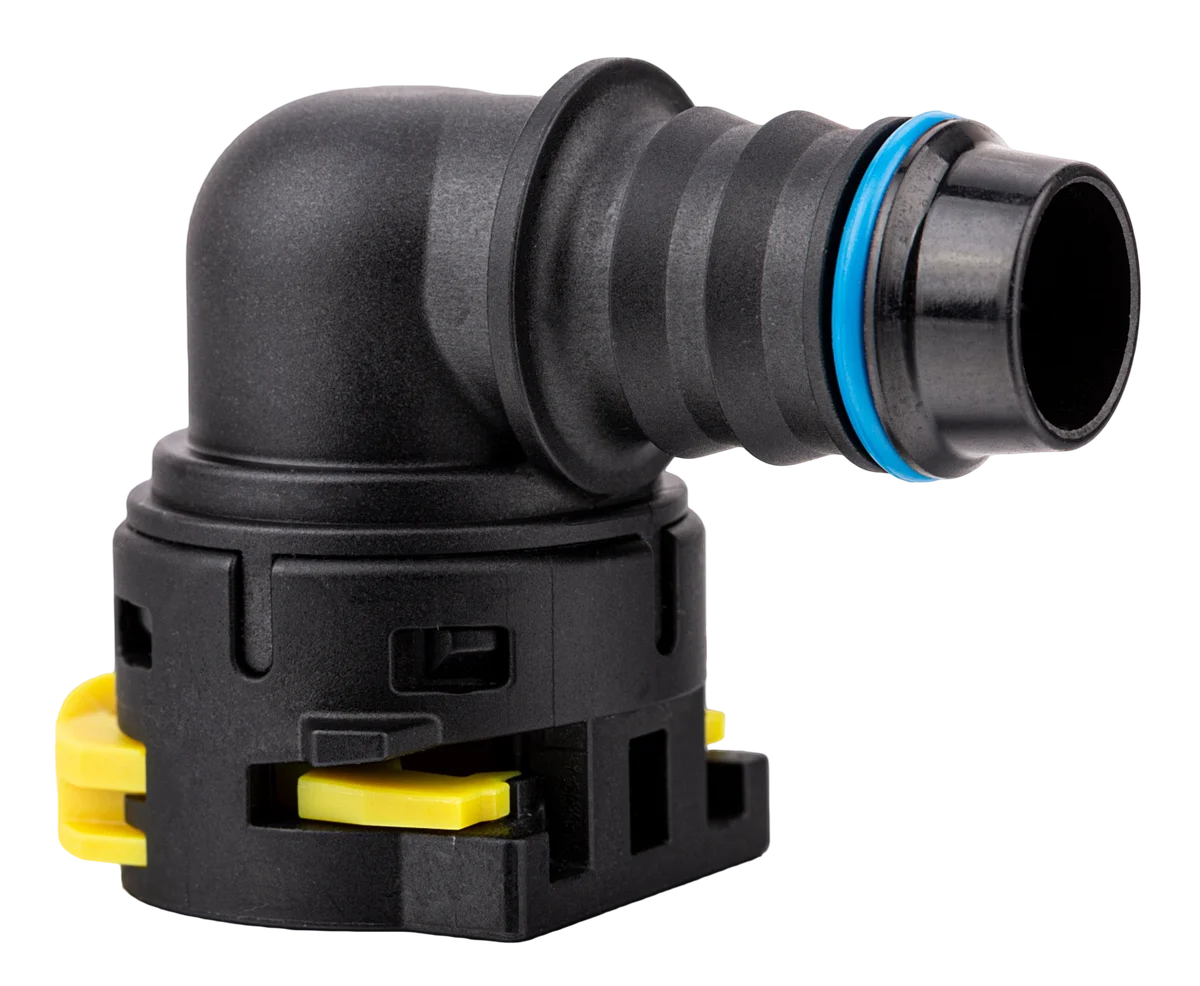

CQC 18 - 90° - Ø18X2mm - SCR UREA
— Specifications
GeometryElbow 90°
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length42.3 mm
StandardCQC18
FamilyCQC Quick coupling
CategoryC-QC 18
— Interfaces · 2
Female 1/2
Compact Quick Coupling
Inner Ø18 mm
Outer Ø28.5 mm
StandardCQC
Fitting dim.18 mm
Min.17.9 mm
Max.18.1 mm
Male 2/2
Fir-tree
Inner Ø12 mm
Outer Ø17.47 mm
Fitting materialPlastic pipe
Fitting dim.14 mm
Tube min.13.7 mm
Tube max.14.3 mm
— Solutions · Applications
No applications listed
