CQC Quick coupling
·
270-50

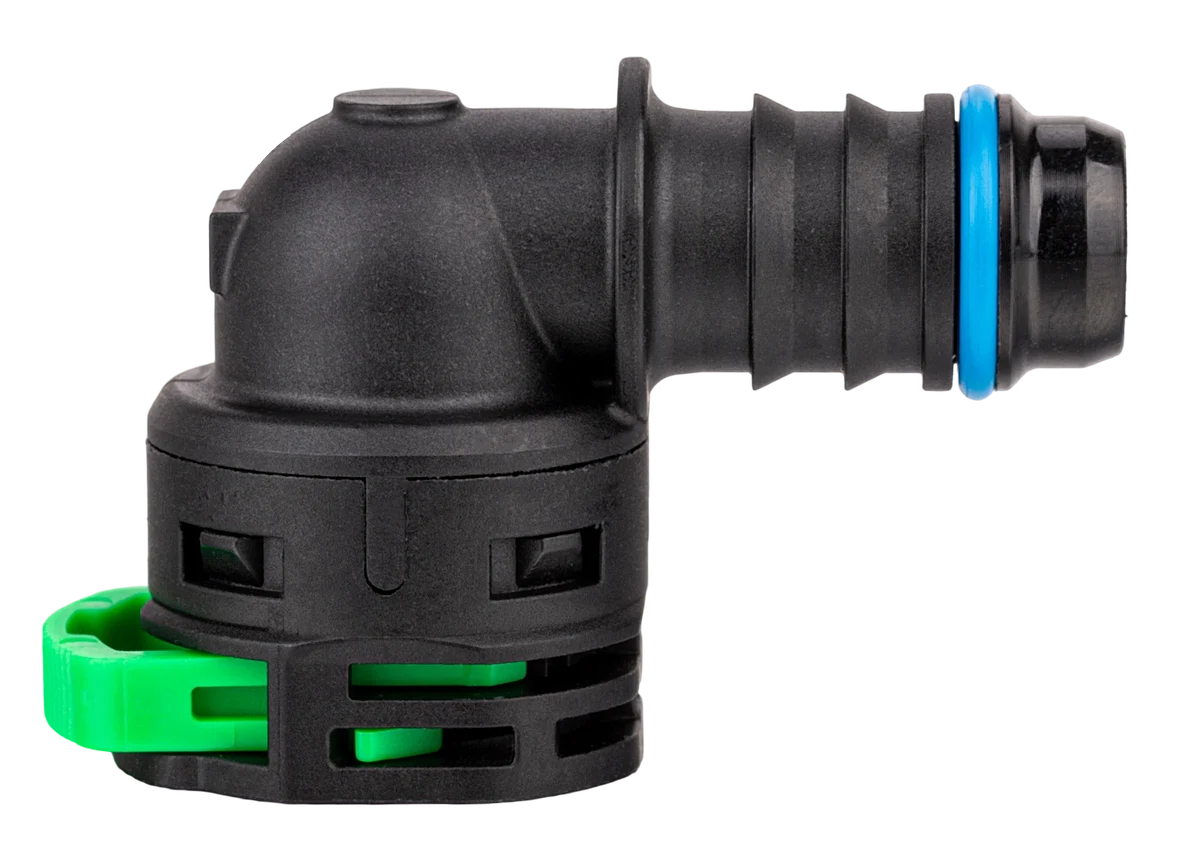

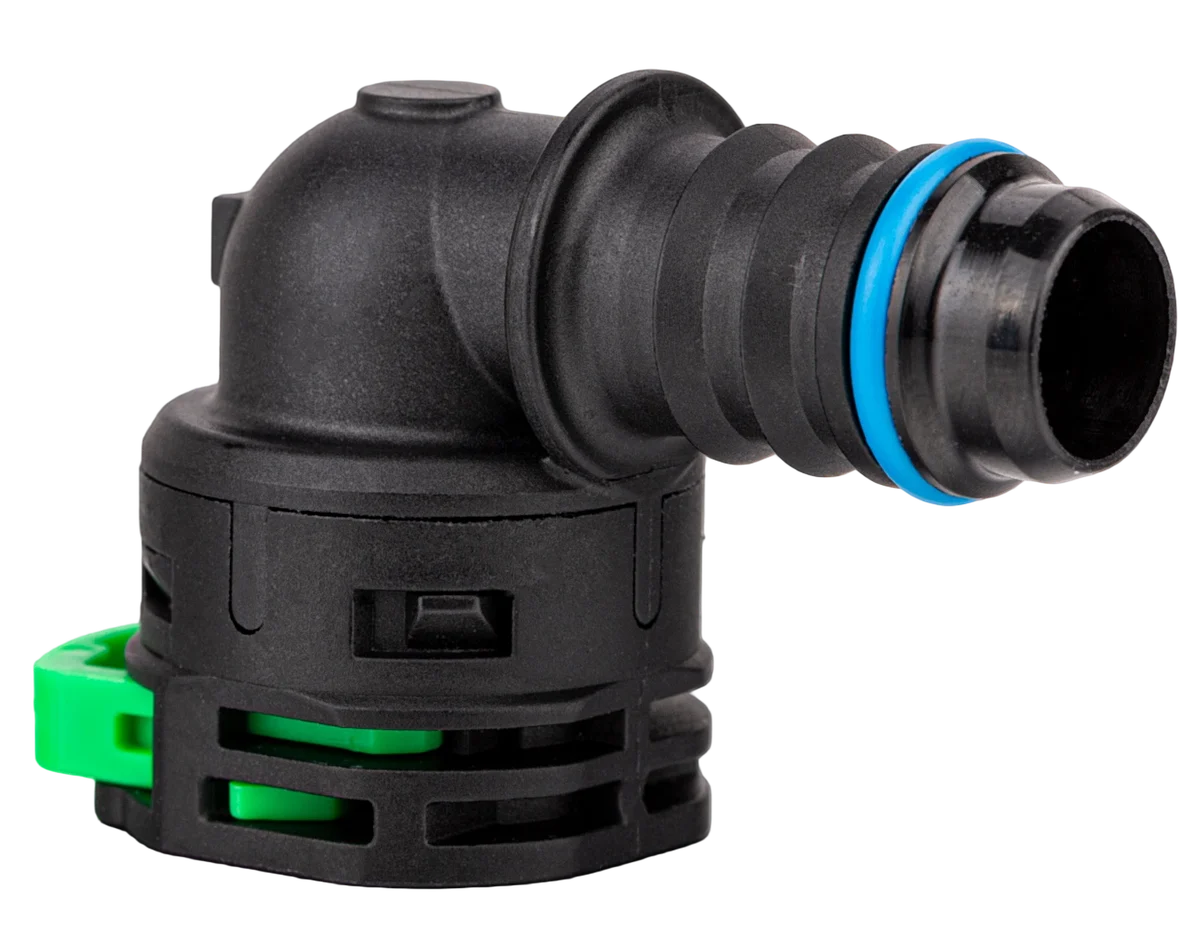

CQC 14 - 90° - Ø15X1.5mm - SCR UREA
— Specifications
GeometryElbow 90°
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length32.8 mm
StandardCQC14
FamilyCQC Quick coupling
CategoryC-QC 14
— Interfaces · 2
Female 1/2
Compact Quick Coupling
Inner Ø14 mm
Outer Ø24 mm
StandardCQC
Fitting dim.14 mm
Min.13.95 mm
Max.14.05 mm
Male 2/2
Fir-tree
Inner Ø9.7 mm
Outer Ø14.55 mm
Fitting materialPlastic pipe
Fitting dim.12 mm
Tube min.11.8 mm
Tube max.12.1 mm
— Solutions · Applications
No applications listed
