CQC Quick coupling
·
270-41

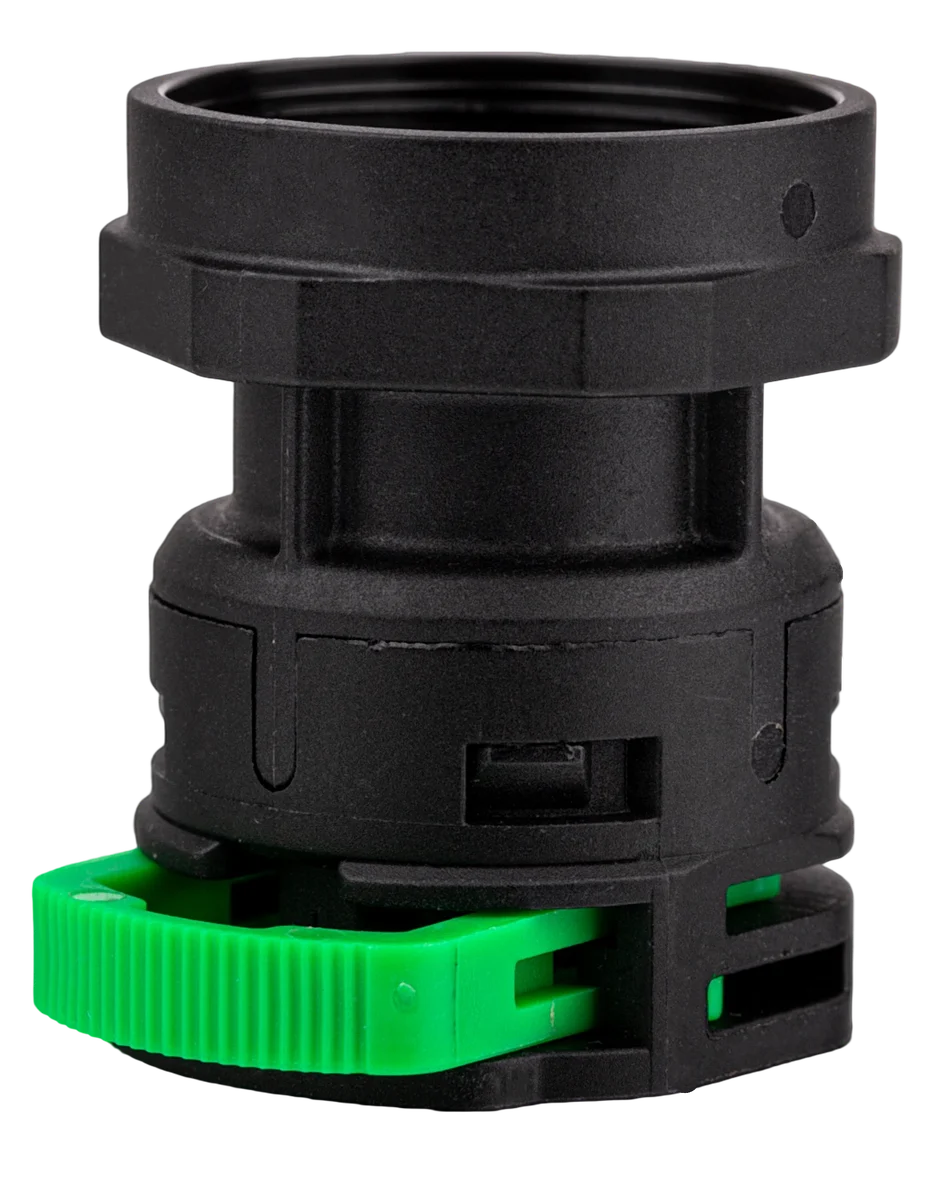

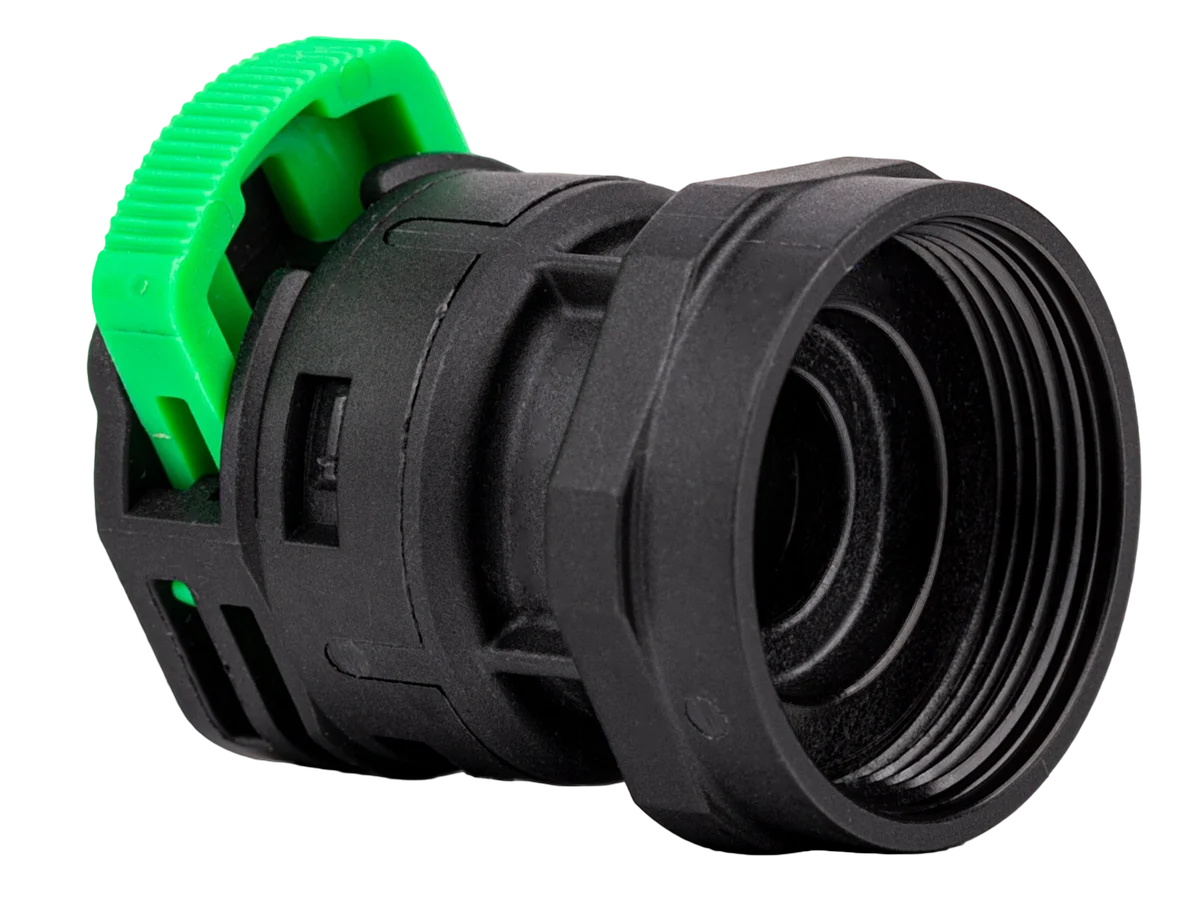

CQC 14 - 0° - M24 - SCR UREA
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length34.2 mm
StandardCQC14
FamilyCQC Quick coupling
CategoryC-QC 14
— Interfaces · 2
Female 1/2
Compact Quick Coupling
Inner Ø14 mm
Outer Ø26.8 mm
StandardCQC
Fitting dim.14 mm
Min.13.95 mm
Max.14.05 mm
Female 2/2
—
Inner Ø23.38 mm
Outer Ø28.9 mm
— Solutions · Applications
No applications listed
