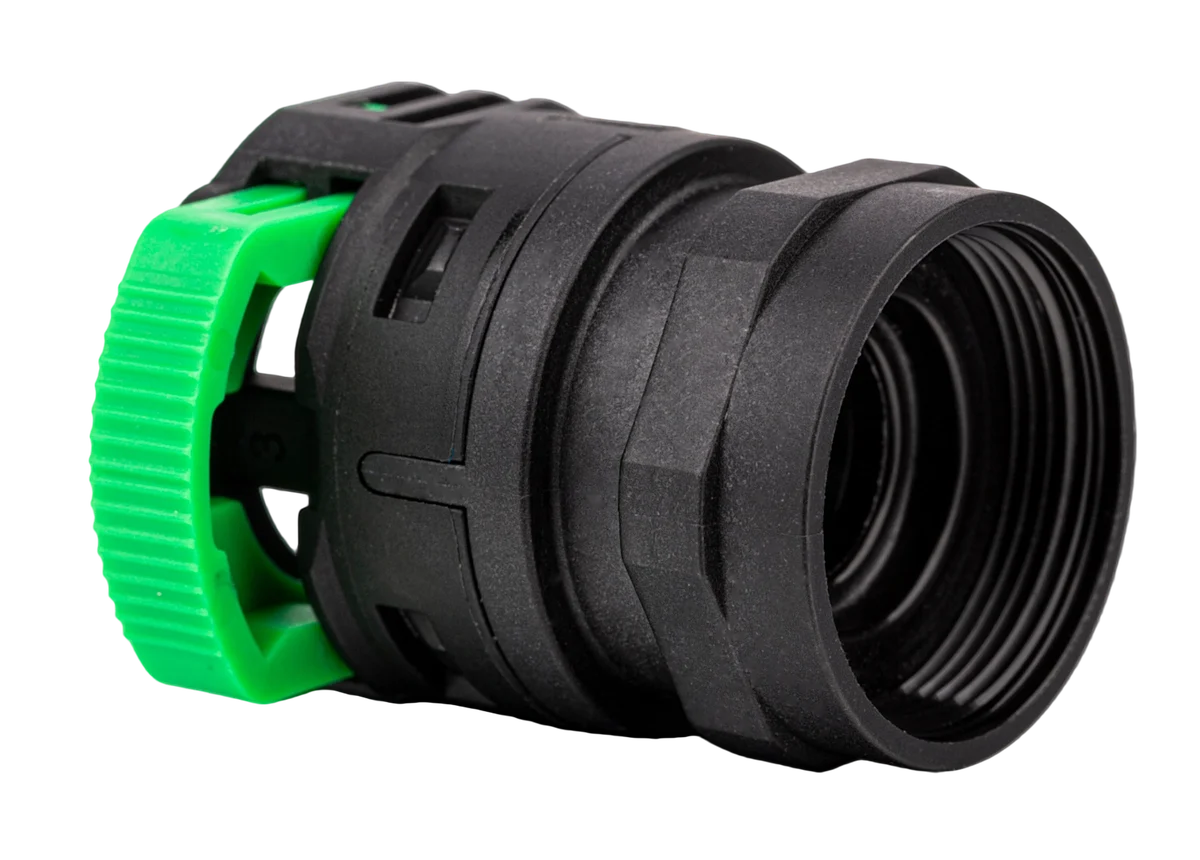

CQC Quick coupling
·
270-39

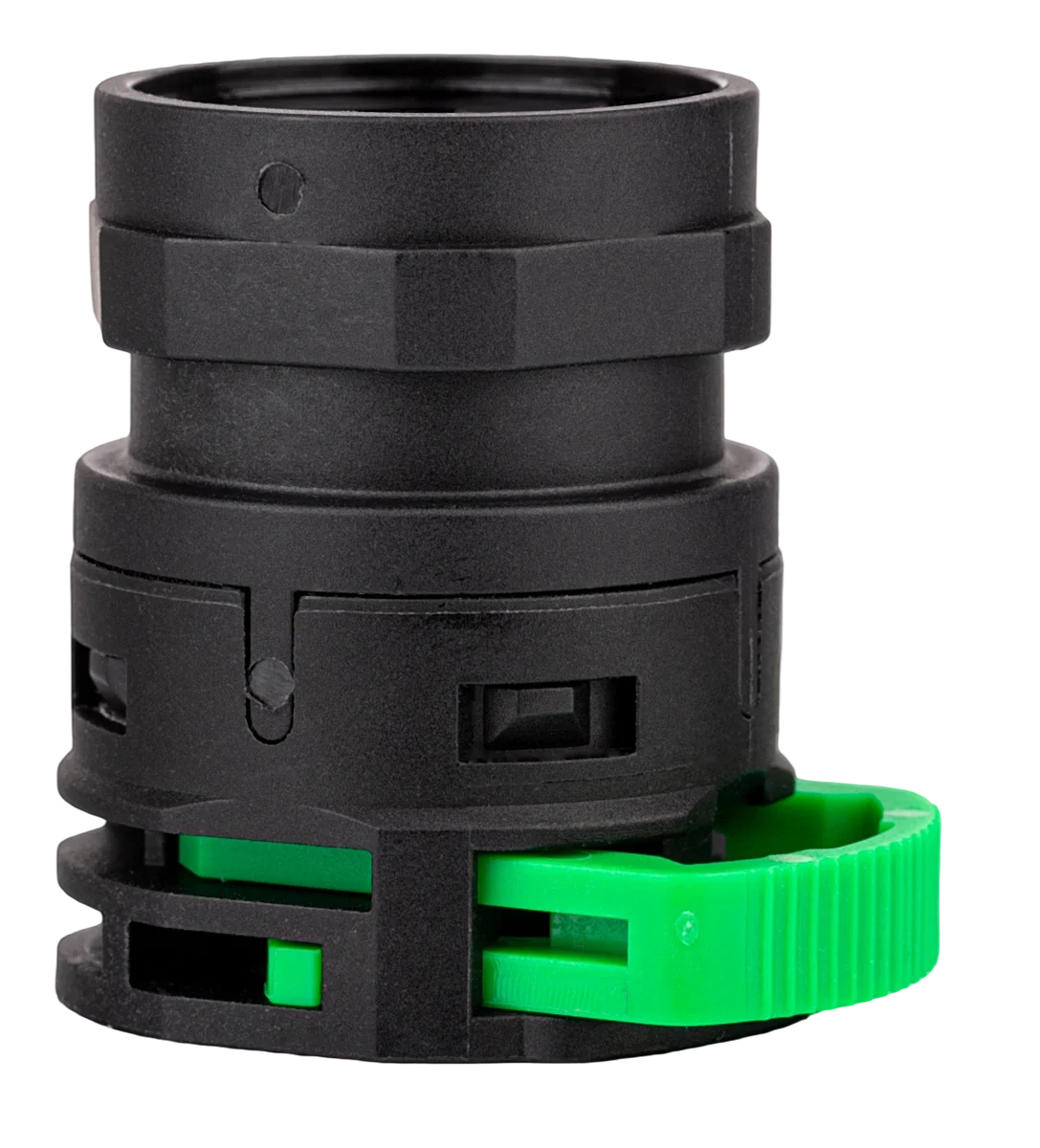

CQC 18 - 0° - M24 - SCR UREA
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length37.2 mm
StandardCQC18
FamilyCQC Quick coupling
CategoryC-QC 18
— Interfaces · 2
Female 1/2
Compact Quick Coupling
Inner Ø18 mm
Outer Ø30.3 mm
StandardCQC
Fitting dim.18 mm
Min.17.9 mm
Max.18.1 mm
Female 2/2
Thread
Inner Ø23.38 mm
Outer Ø26.5 mm
— Solutions · Applications
No applications listed
