CQC Quick coupling
·
270-38

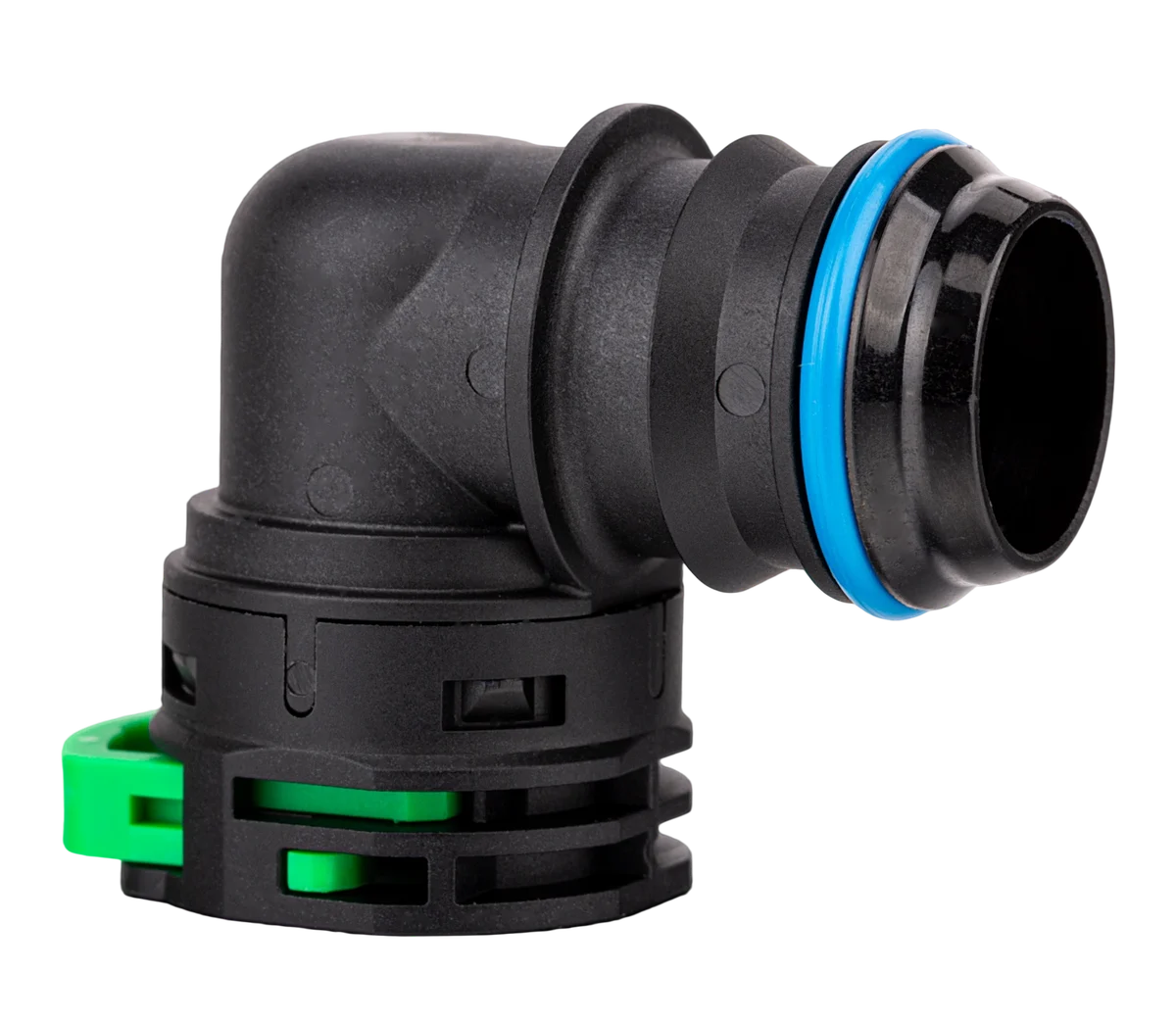

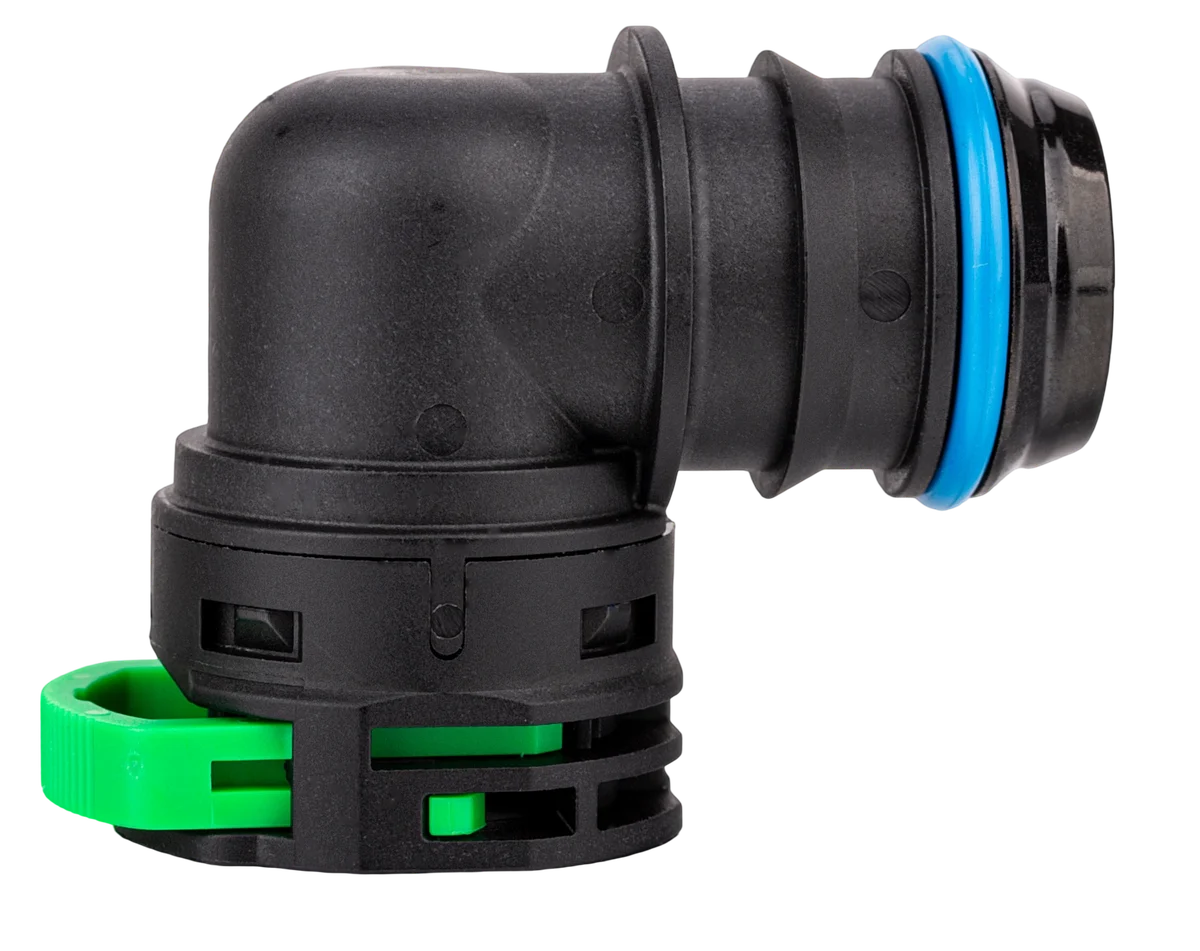

CQC 20 - 90° - Ø24X1.5mm - SCR UREA
— Specifications
GeometryElbow 90°
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length44 mm
StandardCQC20
FamilyCQC Quick coupling
CategoryC-QC 20
— Interfaces · 2
Female 1/2
Compact Quick Coupling
Inner Ø20 mm
Outer Ø32 mm
StandardCQC
Fitting dim.20 mm
Min.19.9 mm
Max.20.1 mm
Male 2/2
Fir-tree
Inner Ø19 mm
Outer Ø26.3 mm
Fitting materialPlastic pipe
Fitting dim.21 mm
Tube min.20.9 mm
Tube max.21.1 mm
— Solutions · Applications
No applications listed
