CQC Quick coupling
·
270-37

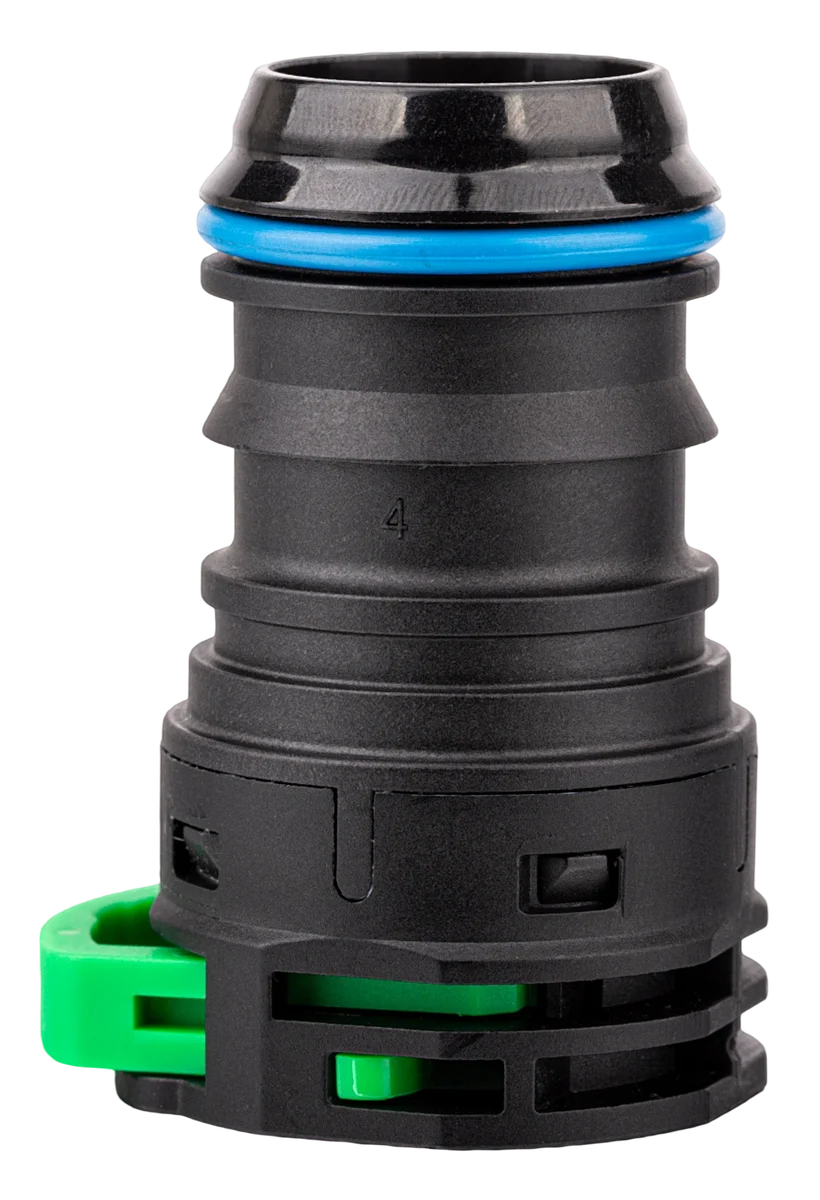

CQC 20 - 0° - Ø25X2mm - SCR UREA
— Specifications
GeometryStraight
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length52.3 mm
StandardCQC20
FamilyCQC Quick coupling
CategoryC-QC 20
— Interfaces · 2
Female 1/2
Compact Quick Coupling
Inner Ø20 mm
Outer Ø32 mm
StandardCQC
Fitting dim.20 mm
Min.19.9 mm
Max.20.1 mm
Male 2/2
Fir-tree
Inner Ø18.73 mm
Outer Ø26.4 mm
Fitting materialPlastic pipe
Fitting dim.21 mm
Tube min.20.8 mm
Tube max.21.2 mm
— Solutions · Applications
No applications listed
