CQC Quick coupling
·
270-103

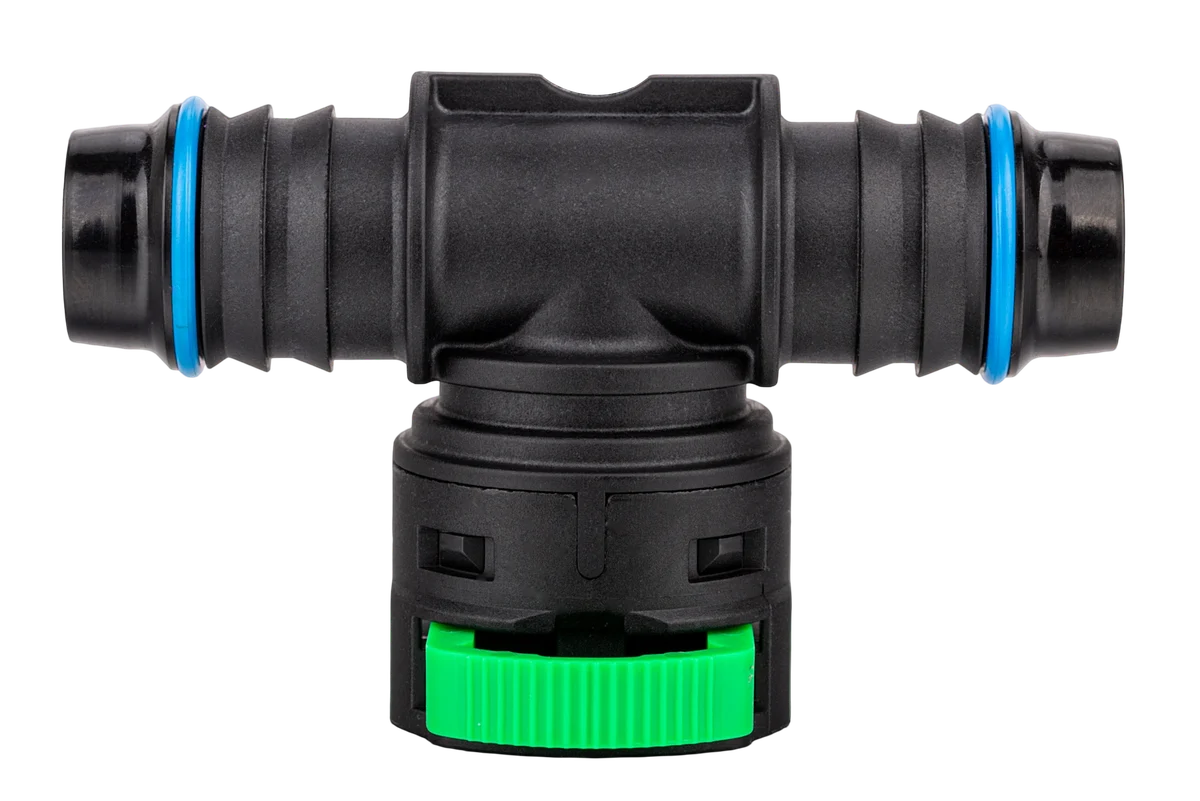

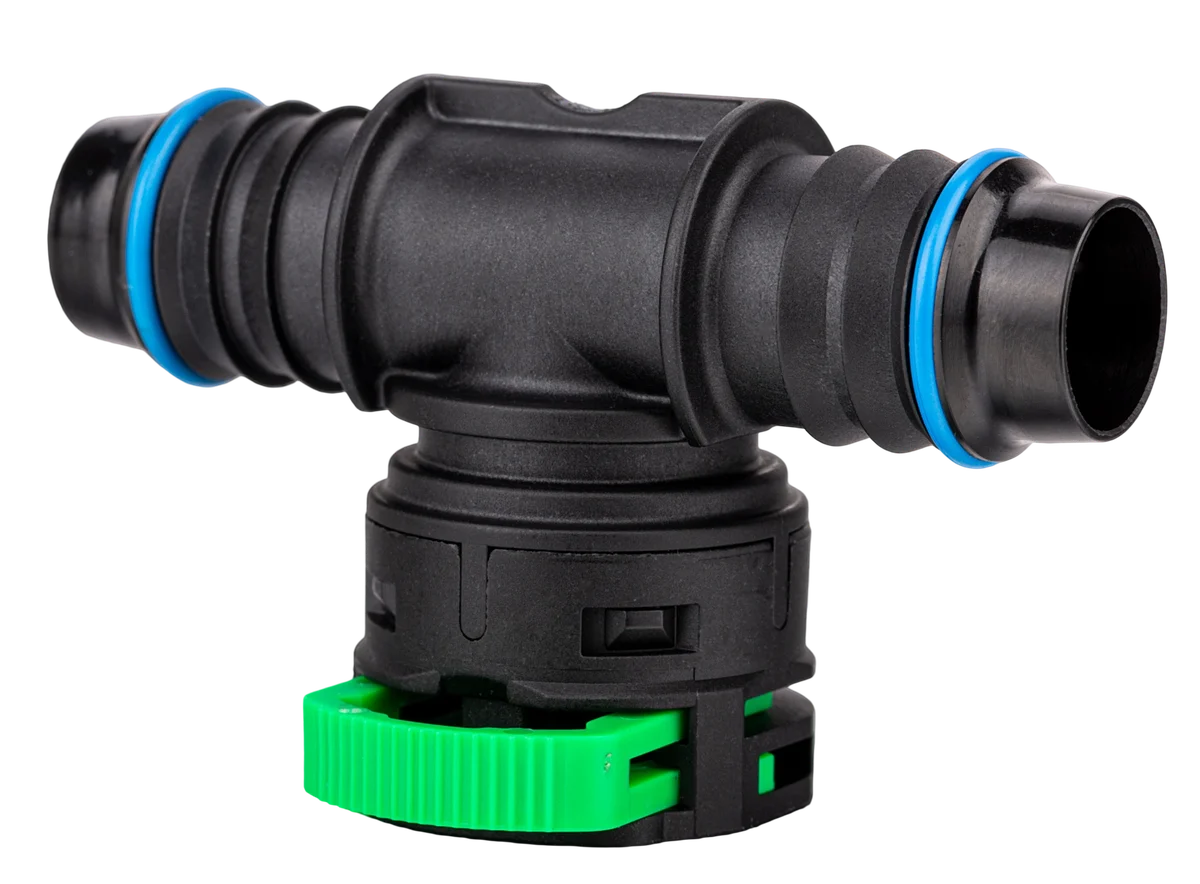

CQC 18 - 3 WAY - 2X Ø18X1.5mm - SCR UREA
— Specifications
Geometry3 WAY T Shape
Working temp.-40 / 120 °C
Pressure5–7 bar
AdBlue temp.-40 / 70 °C
Total length74.1 mm
StandardCQC18
FamilyCQC Quick coupling
CategoryC-QC 18
— Interfaces · 3
Female 1/3
Compact Quick Coupling
Inner Ø18 mm
Outer Ø28.5 mm
StandardCQC
Fitting dim.18 mm
Min.17.9 mm
Max.18.1 mm
Male 2/3
Fir-tree
Inner Ø13.8 mm
Outer Ø19 mm
Fitting materialPlastic pipe
Fitting dim.15 mm
Tube min.14.9 mm
Tube max.15.1 mm
Male 3/3
Fir-tree
Inner Ø13.8 mm
Outer Ø19 mm
Fitting materialPlastic pipe
Fitting dim.15 mm
Tube min.14.9 mm
Tube max.15.1 mm
— Solutions · Applications
No applications listed
